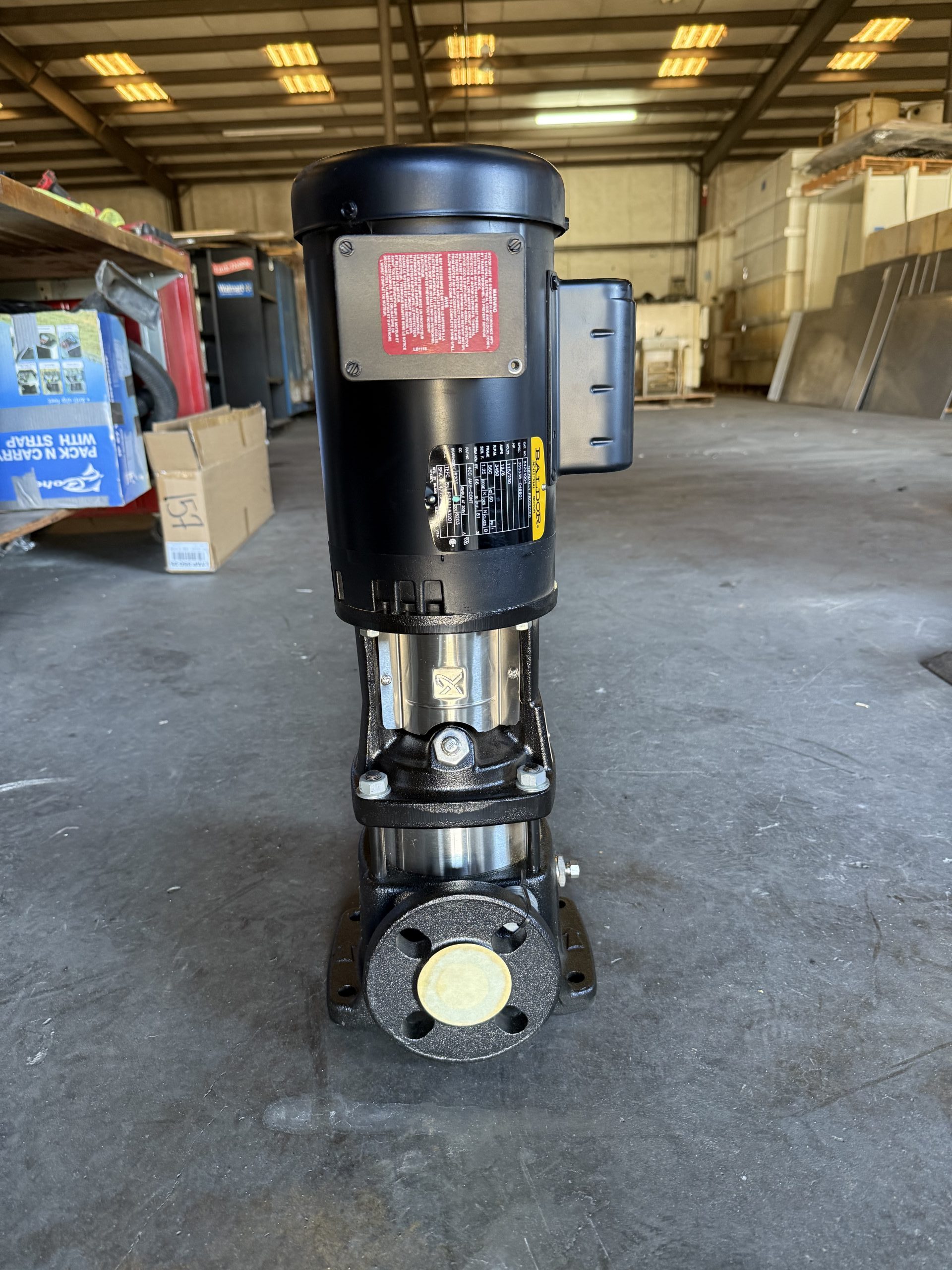

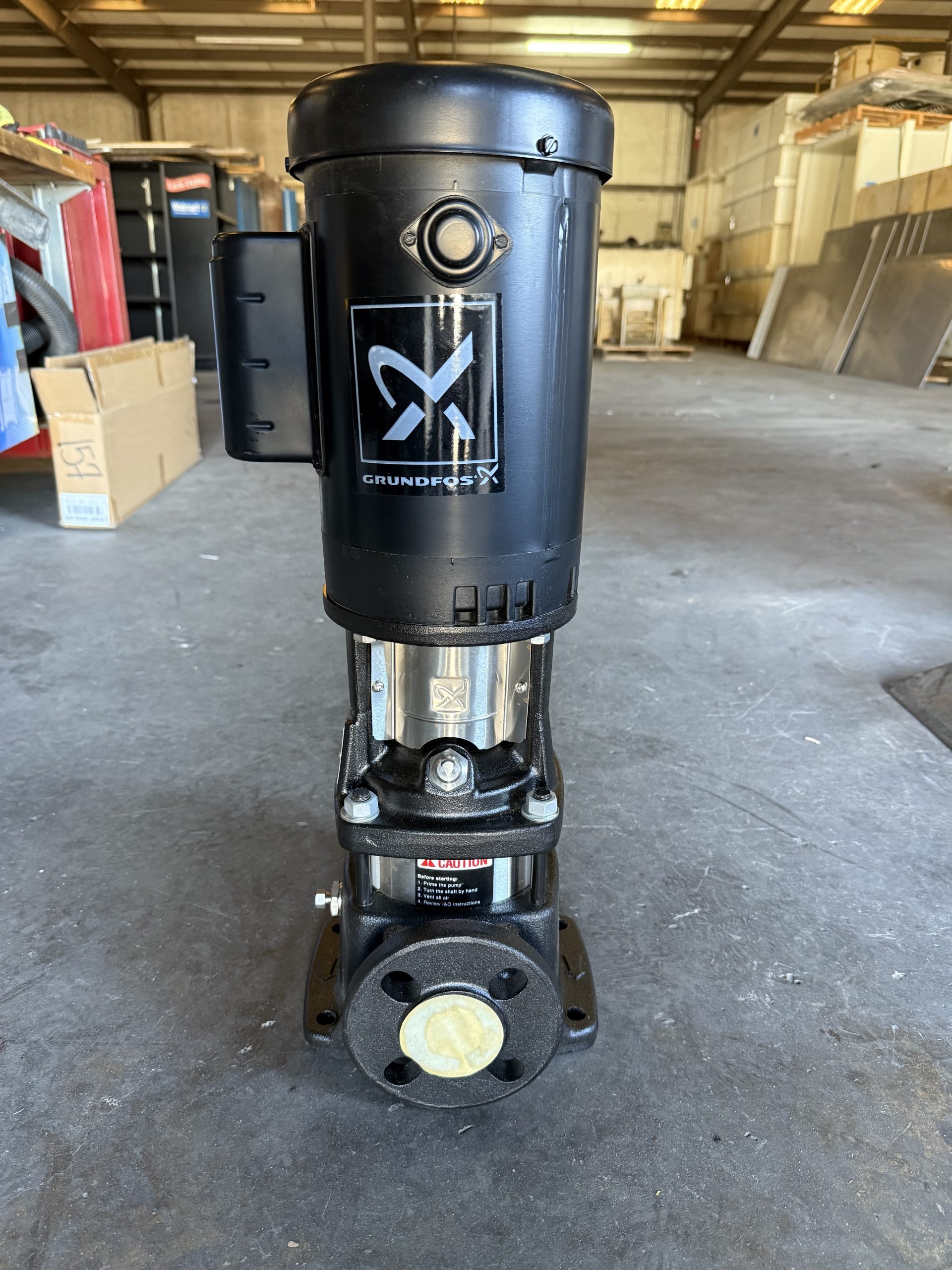

Grundfos vertical, multi-stage centrifugal pumps are designed with the motor mounted directly on top of the pump housing to minimize footprint. Pump suction/discharge chamber, impellers, pump shaft, diffuser chambers, outer discharge sleeve, and impeller seal ring retainers are constructed of 316 stainless steel. The motor stool is constructed of cast iron and is isolated from the process fluid by a 316 stainless steel insert. Each pump is equipped with a high temperature mechanical seal assembly. Pumps are capable of operating at continuous temperatures up to 250 degrees F (121 degrees C). The pump motor is sized to ensure non-overloading when operating on the pump curve.
* Model Number: CRN5-3 A-FGJ-A-E-HQQE
* HP: 1.0
* GPM: 30
* Head (psid): 28
BaldorMotor115/230V, 12/6 Amp,Single Phase,60Hz, 3450RPM.
This item is brand new and still in box!!
FOB Forest City, NC
