Model No.: C-DE204-P1
Model No. Description: Process Technology C-DE204-P1, DE Series Digital Controller w/RTD1000 (PTFE T-couple), 20 Amps FLA, 480V.
20 amps, Single Set-Point, Precise Control

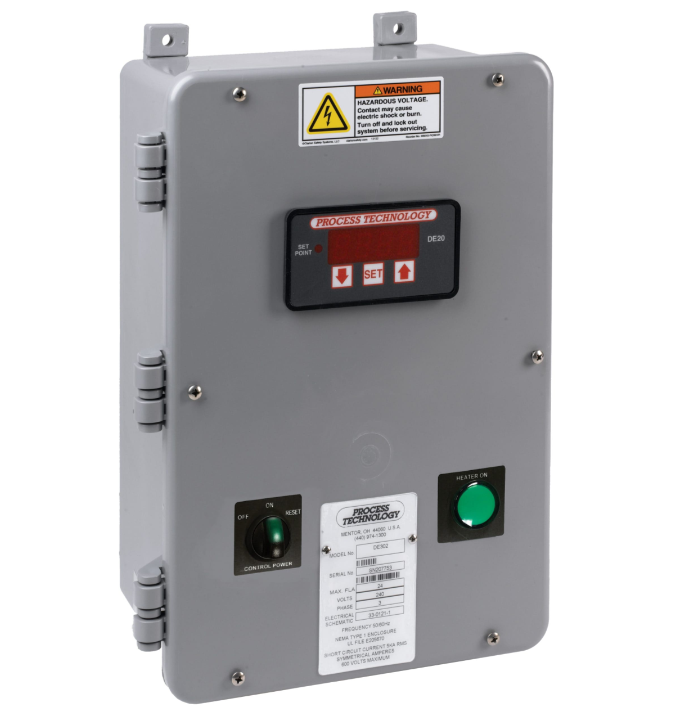

The DE Digital Combination Control provides precise digital control for consistent plating and etch rates in most aqueous processes. Available in single or three phase, this control features a large, easy-to-read LED display (.56” high). Included standard with the control is a 10-foot (3m), 1000-ohm platinum RTD sensor covered in Fluoropolymer (FEP).
Housed in a vapor-resistant, NEMA 1, IP21, gasketed 1/8 DIN plastic enclosure with sealed tactile switches and stainless steel hardware, the DE Digital Combination Control offers a large switching capacity from 20-125 amps up to 600 volts. The adjustable temperature range spans from -40°F (-40°C) to 1000°F (538°C), making it versatile for various applications.
