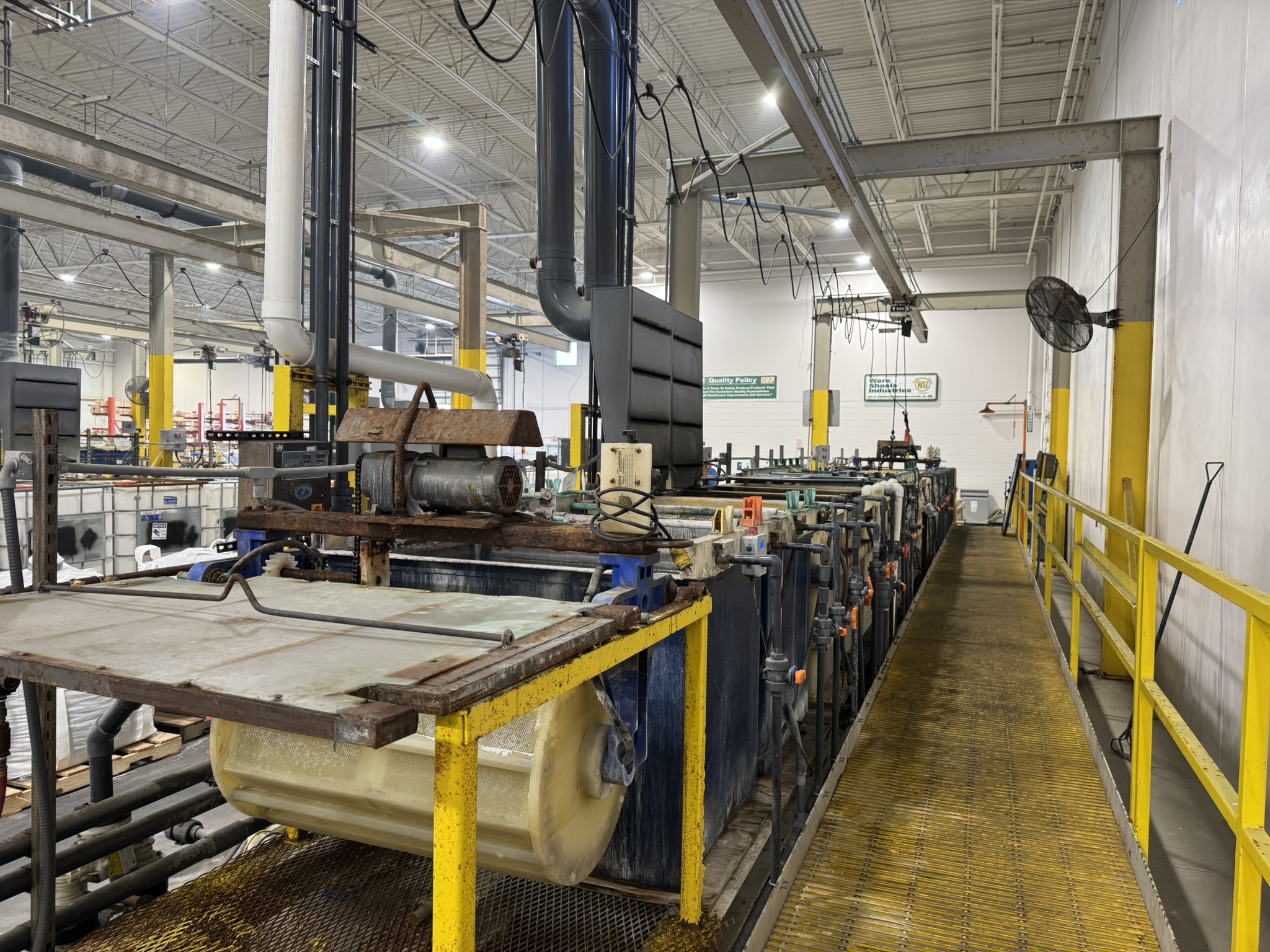

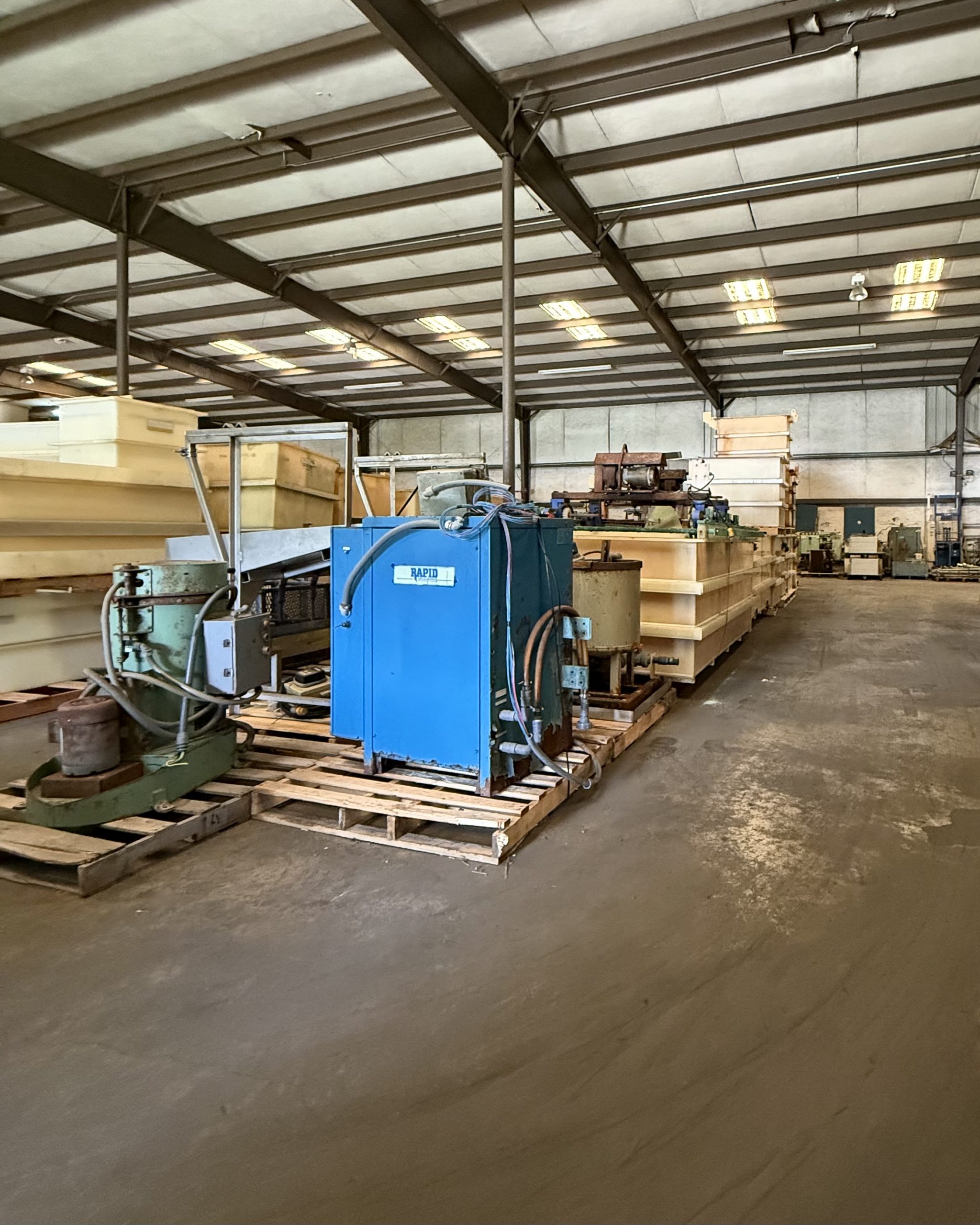

Zinc Barrel (18″ x 36″) 16-Station Plating Line (Manual)

‘Mfg. Installed 2005’

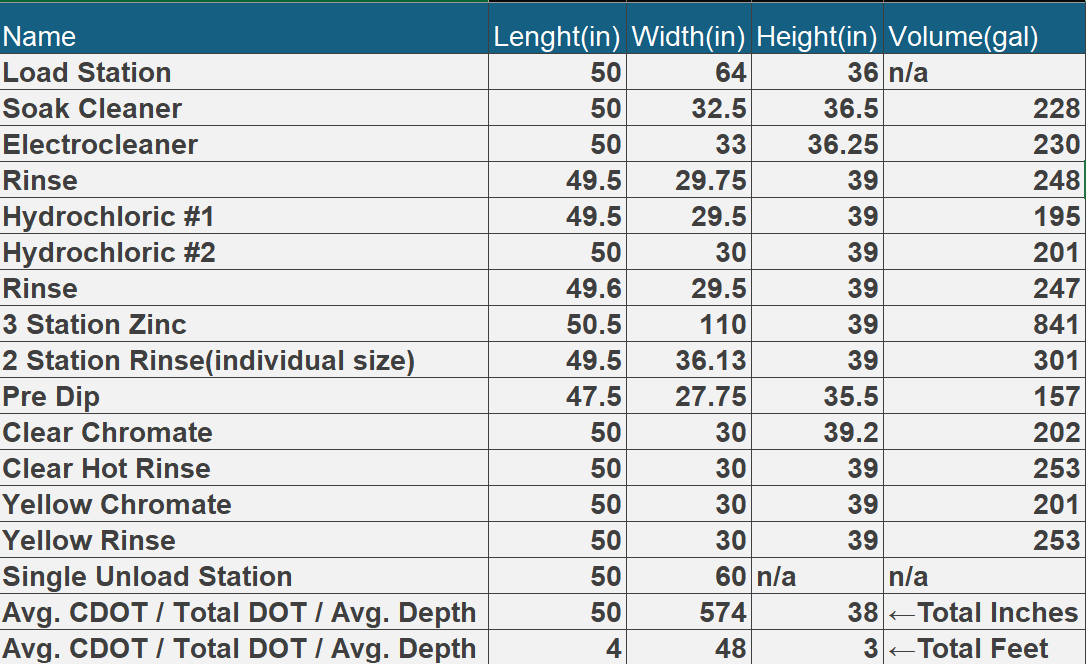

*Individual Tank Dimensions in Photos*

Station Schedule:

1. Load Station
2. Soak Cleaner (Mild Steel)
3. Electroclean (Mild Steel)
4. Rinse (Polypro)
5. Hydrochloric #1 (Polypro)
6. Hydrochloric #2 (Polypro)
7. Rinse (Polypro)
8. 3 Station Zinc Plate with Bussing and Anode Baskets (Polypro)
9. 2 Station Rinse (Polypro)
10. Pre Dip (Polypro)

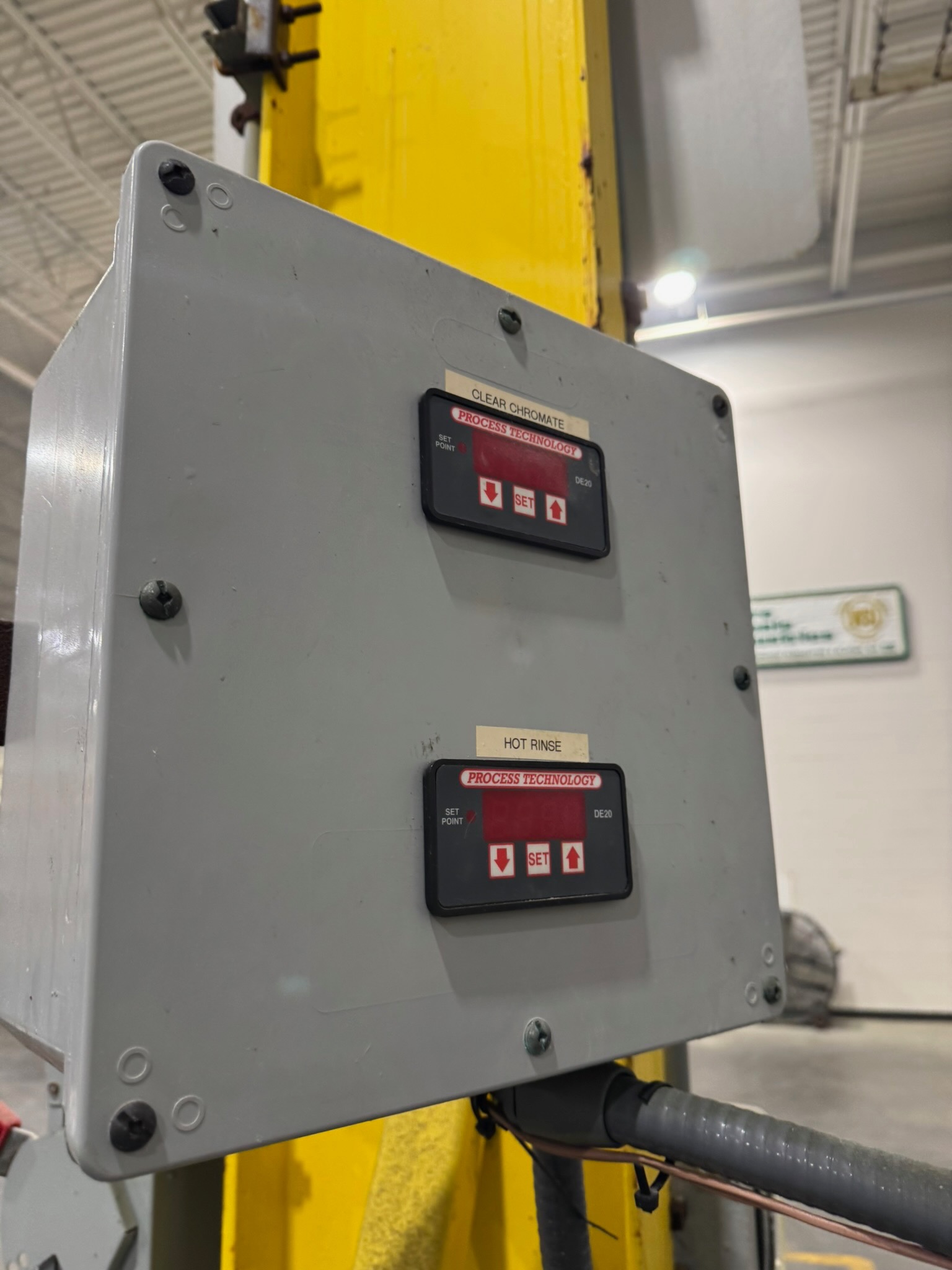

11. Clear Chromate (Polypro)
12. Clear Hot Rinse (Polypro)
13. Yellow Chromate (Polypro)
14. Yellow Rinse (Polypro)

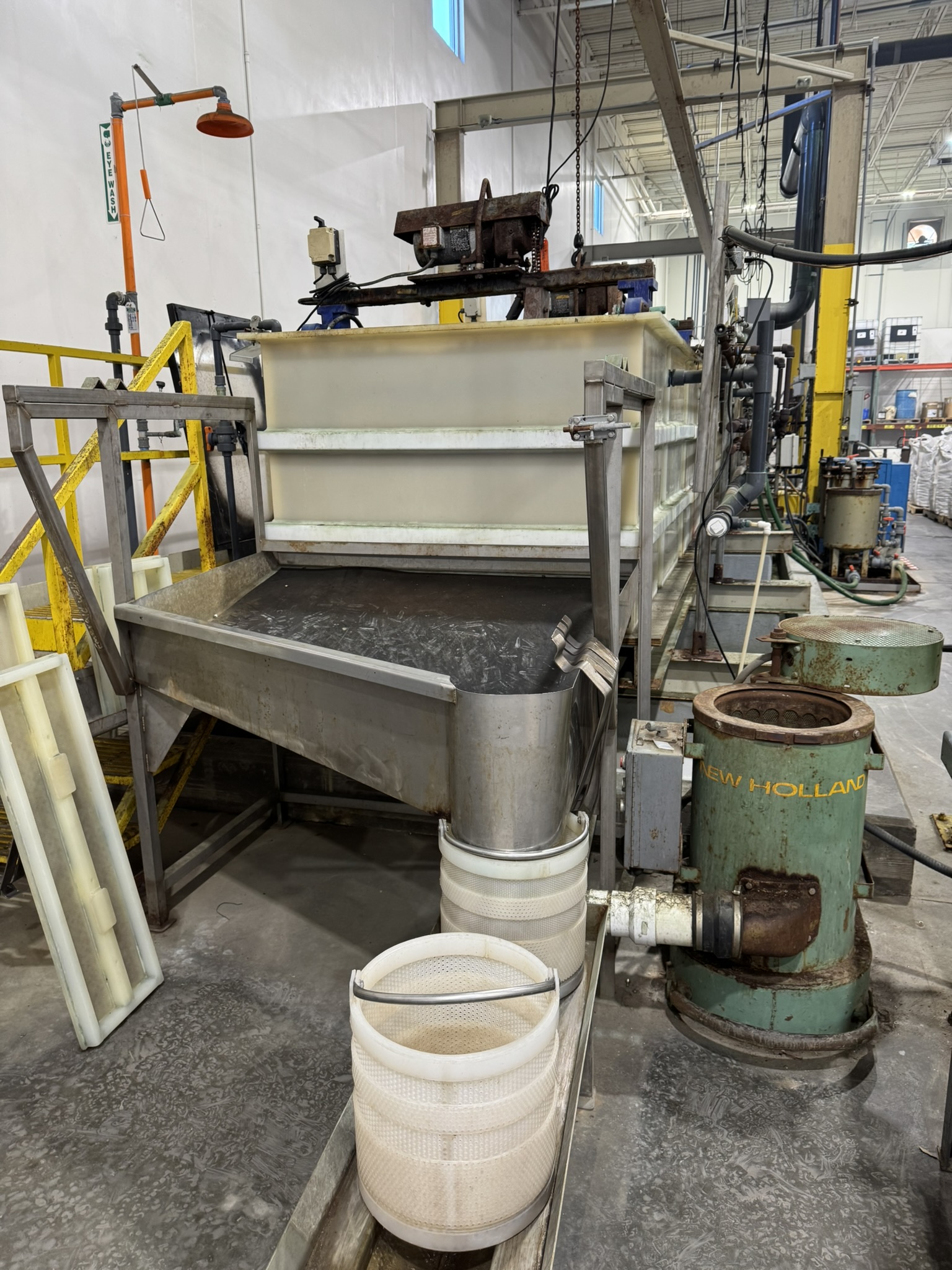

15. Single Unload Station with Chute (Stainless Steel)

Included Materials

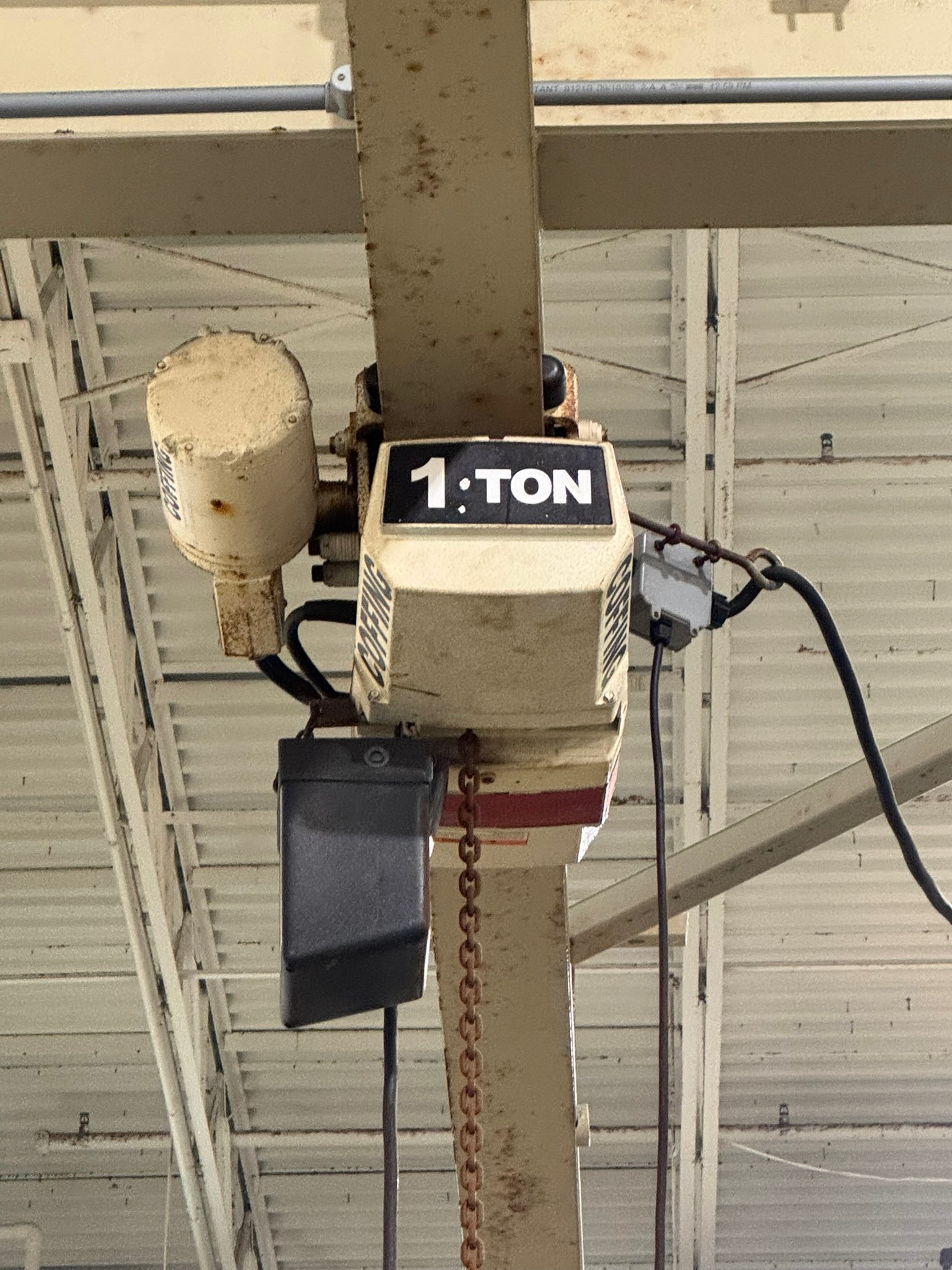

• (1) Coffin 1 Ton Hoist with Motorized Trolley
  • • Good Working Condition

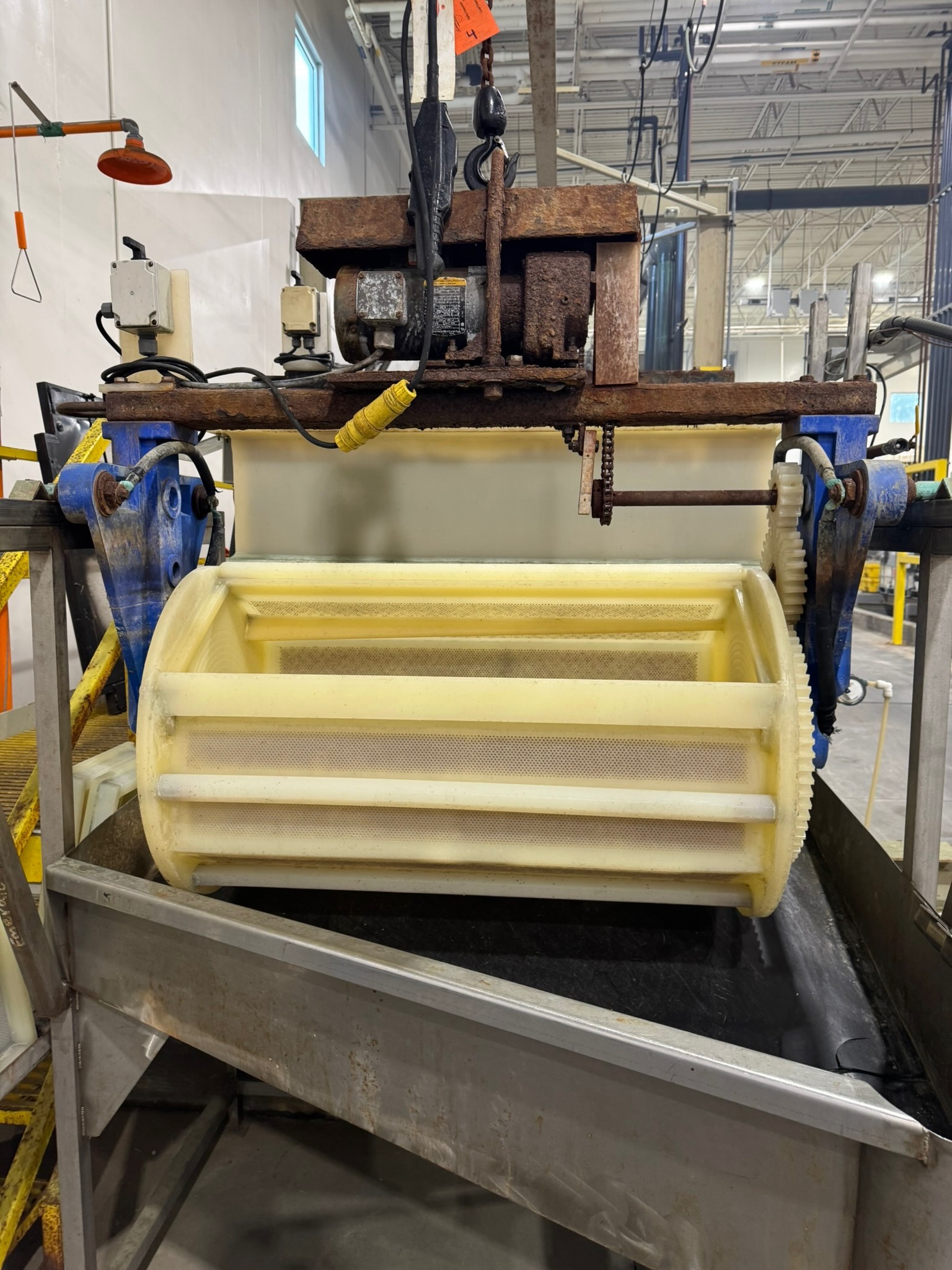

• (2) Singleton 18″ x 36″ Motorized-Barrels
  • • Fair to Good Condition

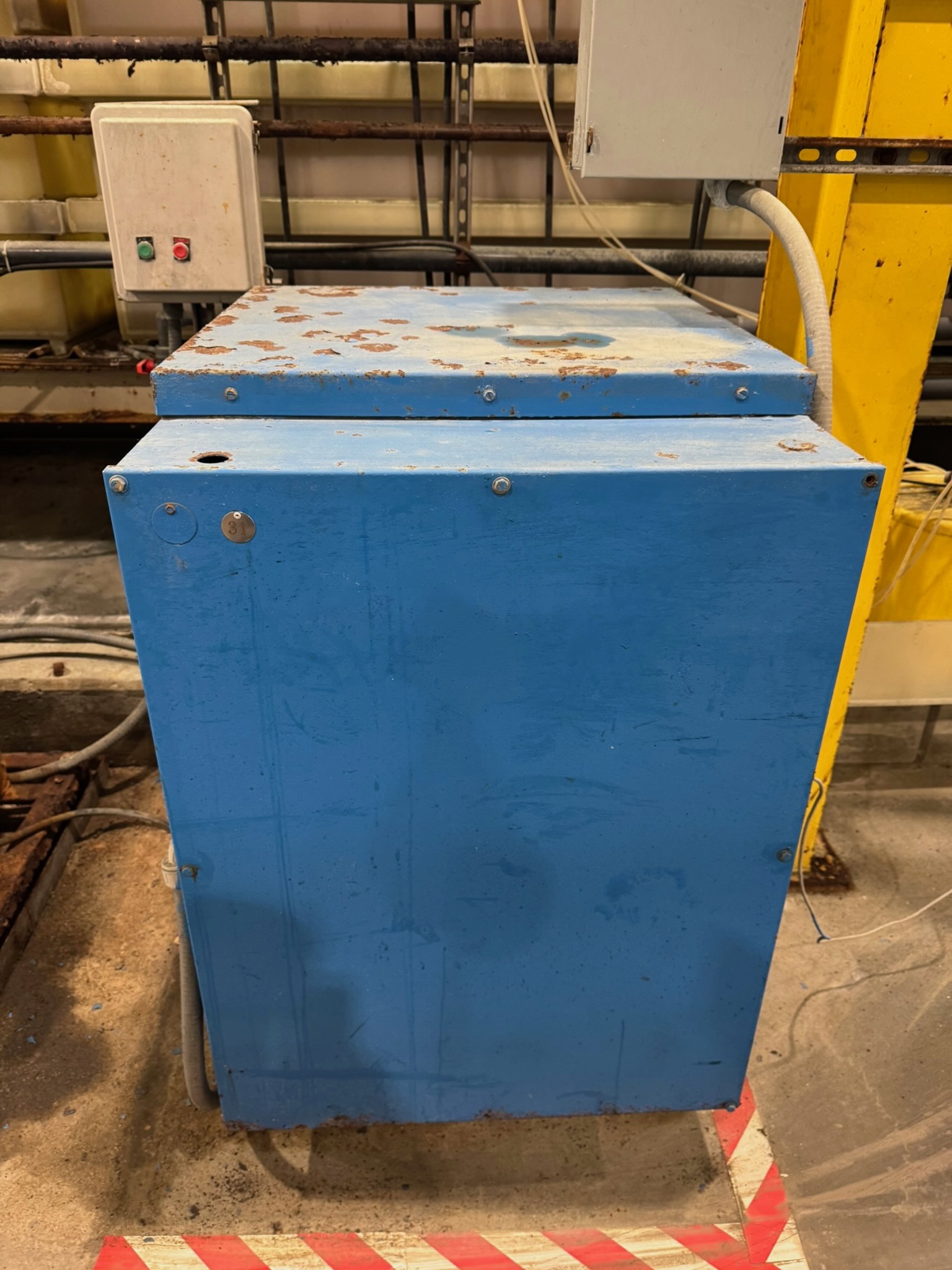

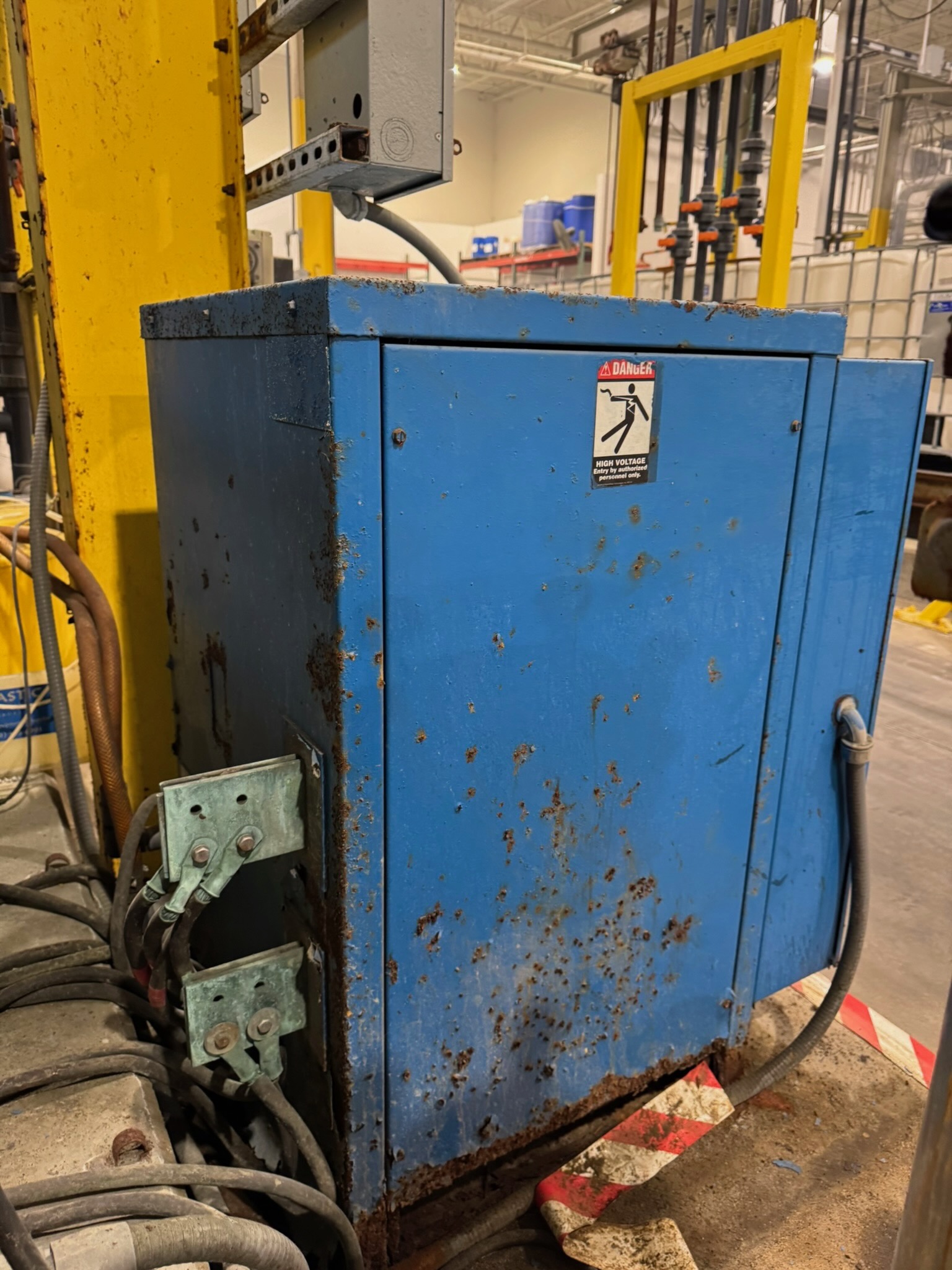

• (1) Rapid Power DC Power ‘SCR’ Supply, 15VDC/2000 Amps, 3ph/480VAC, Air-cooled, w/Remote
  • • Fair to Good Condition

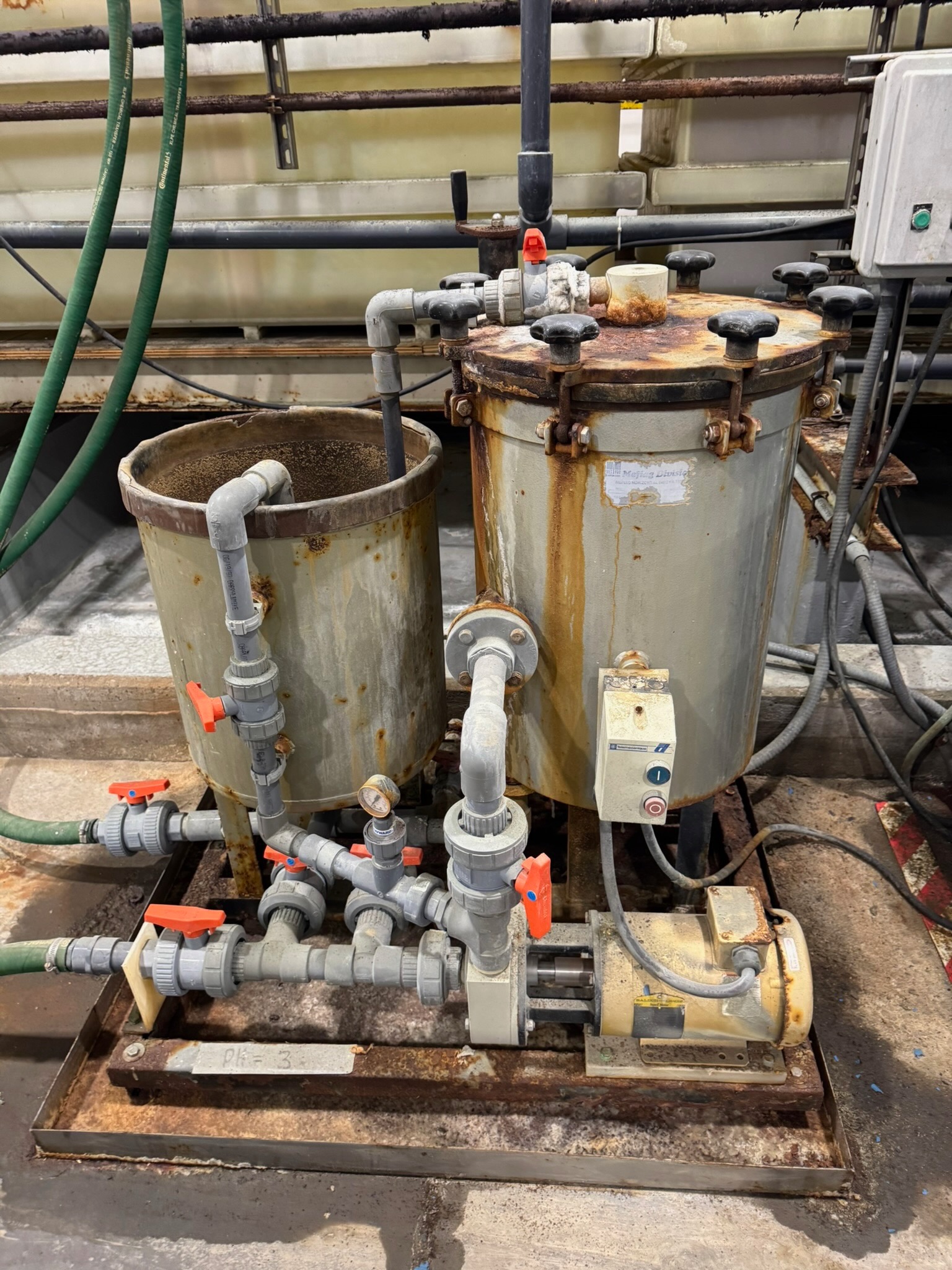

• (1) Mefiag Filter System with Slurry Tank, Model 3200SY
  • • Fair Condition

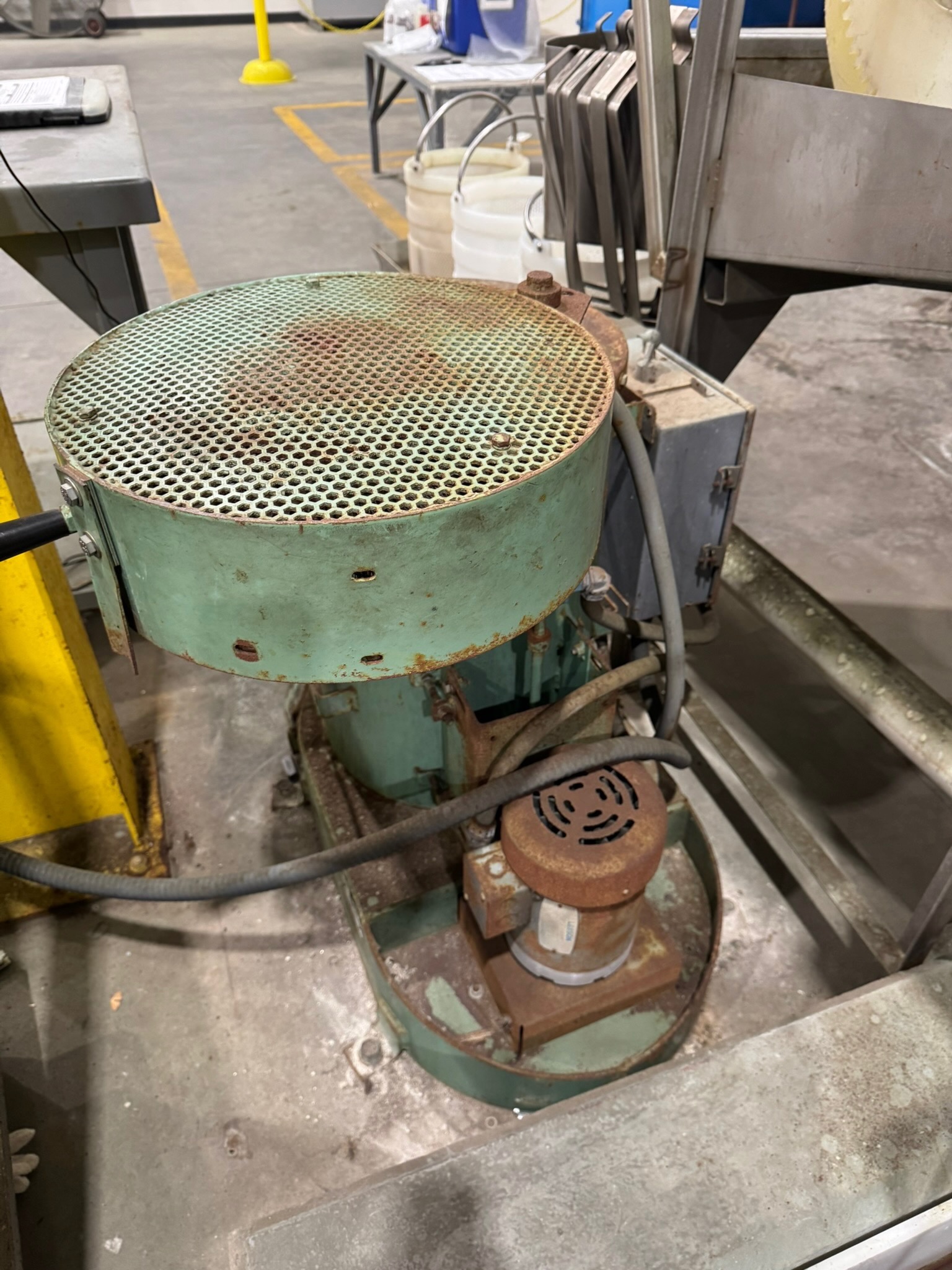

• (1) New Holland 12″ x 12″ Spin Dryer, Electric Heat, Model K-24
  • • Fair to Good Condition
